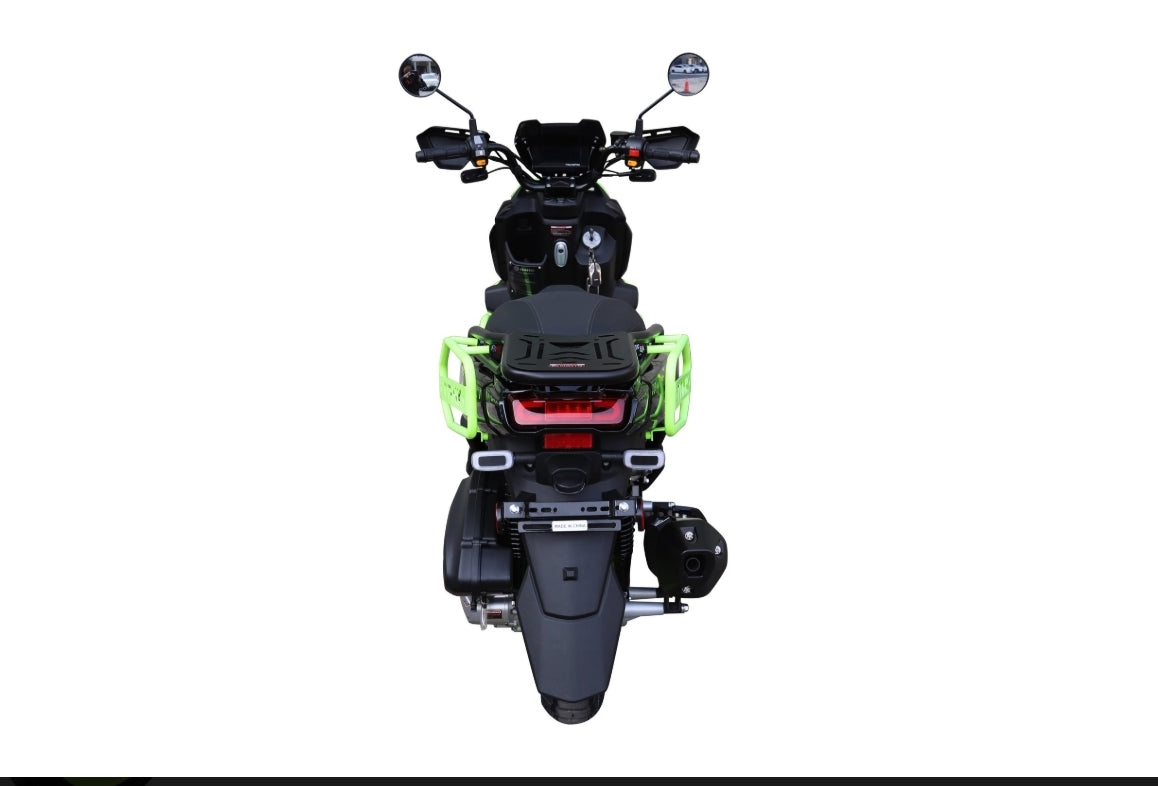

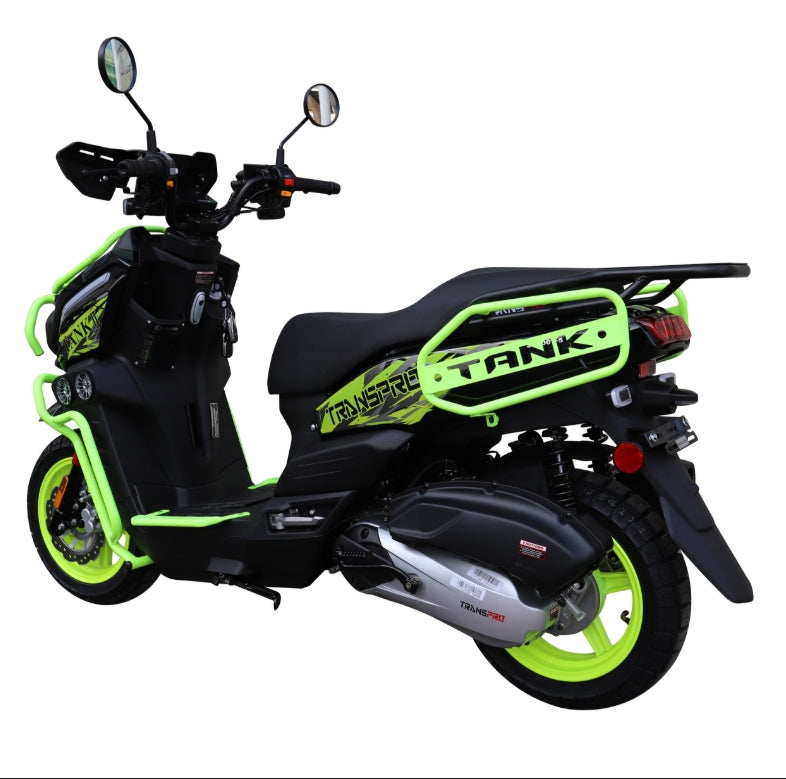

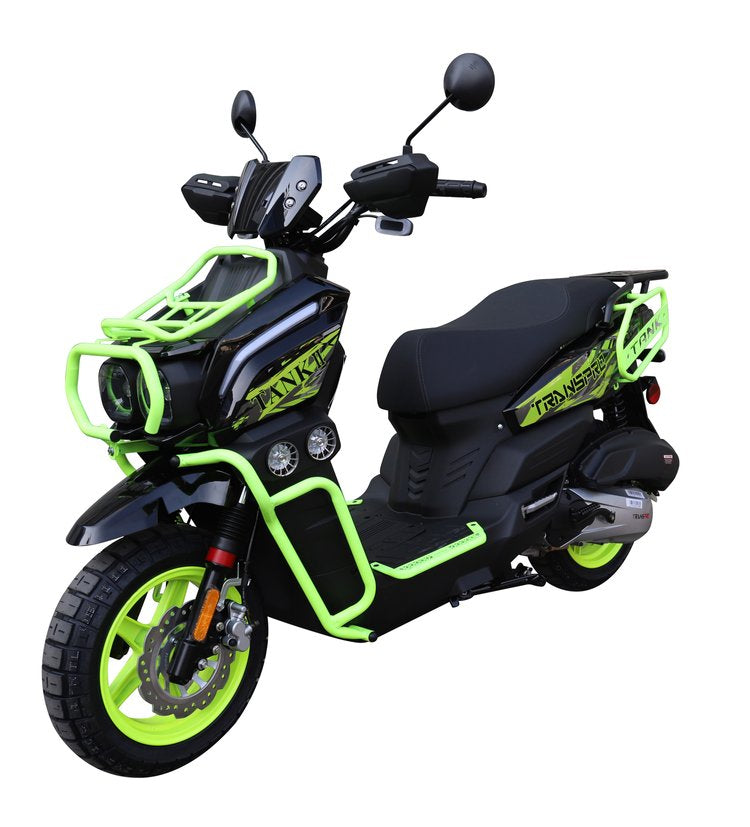

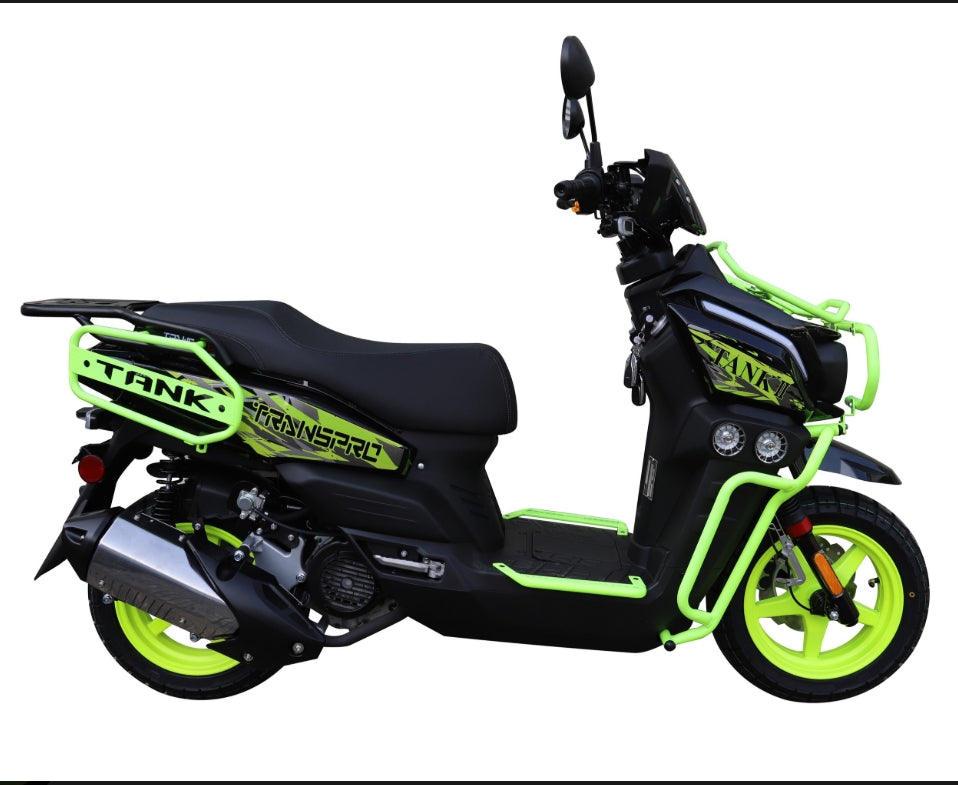

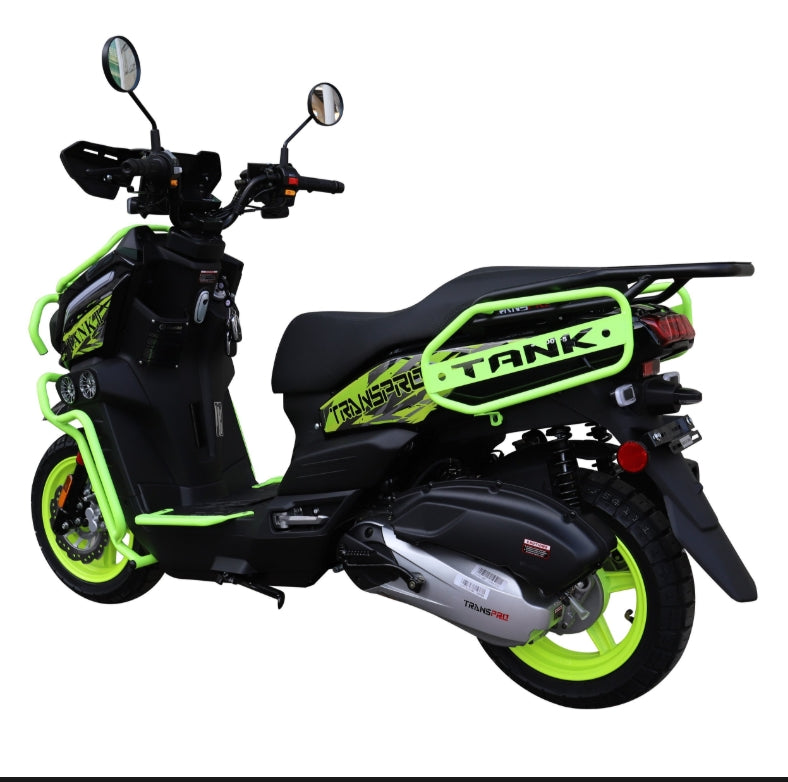

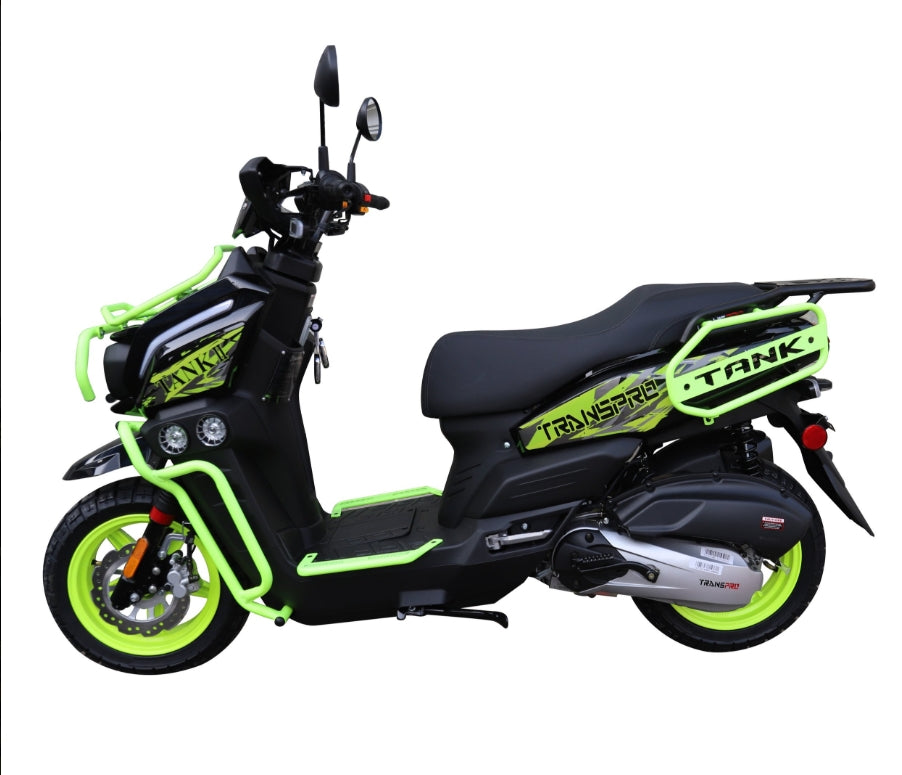

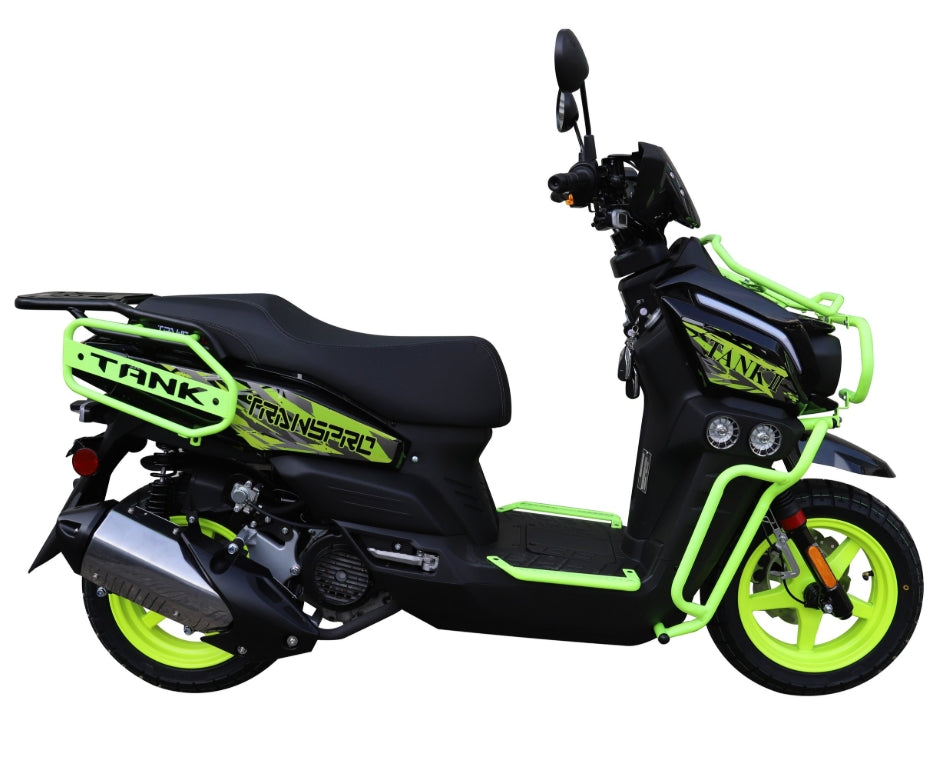

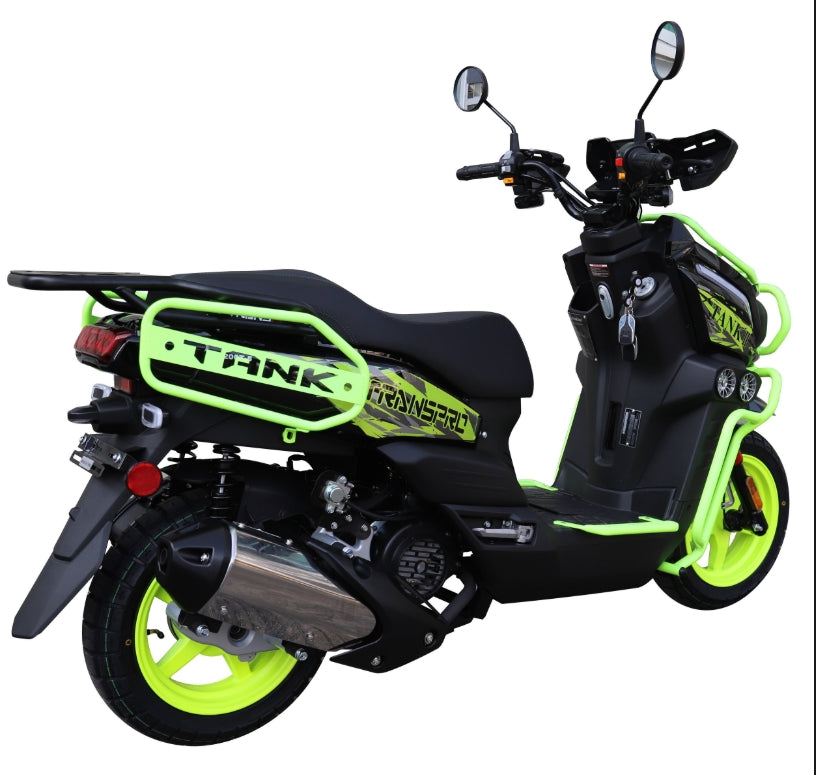

TANK II 200CC

MODEL SERIES              JJ200T-5

ENGINE MODEL            JJ1P161QMK

DISPLACEMENT             168.9cc

ENGINE STYLE                Single Cylinder, 4 Stroke

COOLING SYSTEM          Air-cooled

COMPRESSION               9.2

IGNITION                        CDI

STARTING TYPE             Electric/Kick Starter

MAX. POWER                 8.3/8000 kw/r/min

MAX. SPEED                     95 km/h (59 mph)

MAX. TORQUE               11.0/6000 Nm/r/min

WHEELBASE                  1340 mm

FRONT TIRE                    120/70-12

REAR TIRE                       120/70-12

BRAKE STYLE               Front Disk, Rear Drum

NET WEIGHT                   105 kg (231 lbs)

CROSS WEIGHT               135 kg (297 lbs)

MAX LOAD                       269 kg (594 lbs)

FUEL CAPACITY               6.0 Liters
